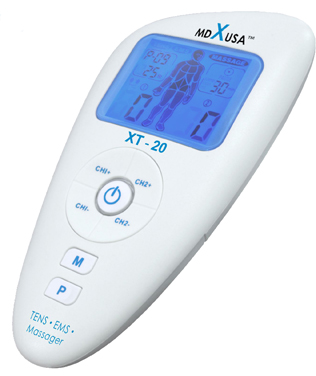

TENS > XT20



The XT series is a medical device designed for home use. The stimulator has plenty of programs will satisfy you every time when you have a need to conquer your pain, training your muscles or just massage yourself to feel more comfortable.

Simply put, the XT series is a must have device for every home user recieving physiotherapy.

Download Brochure here

  • Different applications: TENS, EMS, Massager.

    Memory functions for every program.

    Different programs for various areas of treatment.

    Blue background lighting during the use

    Lock function

    2 channel TENS/EMS with 2 leads/4Pads

    Initial curve shape: biphase square-wave pulse

    Pulse duration: 40– 250 μs

    Pulse frequency: 1–120 Hz

    Output voltage: max. 90 V pp (at 500 Ohm)

    Output current: max. 180 mA pp (at 500 Ohm)

    Power supply: 4x AAA batteries

    Treatment time: adjustable from 5 to 90 minutes

    Intensity: adjustable from 0 to 15

    Operating conditions: 10 °C – 40 °C (50 °F – 104 °F) with a relative humidity of 30 – 85%

    Storage conditions: -10 °C – 50 °C (14 °F – 122 °F) with a relative humidity of 10 – 95%

    Dimensions: 122 x 59 x 23 mm
