Holter and Ambulatory> Cubix Holter

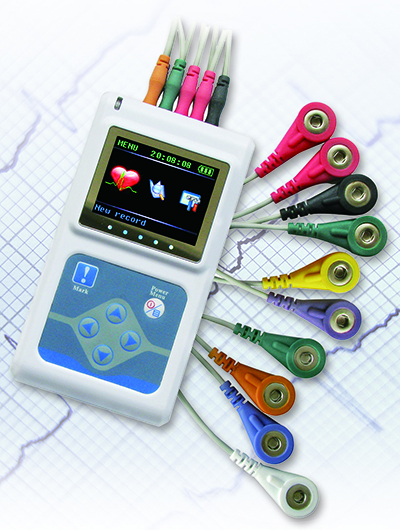

The Cubix holter is a state-of-the-art holter device to measure patients EKG signals constantly throughout their day without being a discomfort due to its compact size. An event marker button allows a patient to mark the time when he or she feels cardiac distress allowing doctors to easily find data according to the event market time.

The Cubix holter is a must have portable device for any cardiologist to do a complete and thorough diagnosis of patients.

Download Brochure Here

Recorder Features
■ With advanced design and technology, the recorder can work stably,
   dependable and is durable.
■ Be provided with the capability of anti-jamming and shock-pro.
■ Small volume with OLED screen. The resolution is 160*128.
■ Be provided with functions of waveform preview, record review and event
■Accurate record of the start time of the data sampled owing to the real time clock
  of itself.
■Avoid damage owing to the repeating inserting and pulling out by using the
  inbuilt  TF card to storage the data.
■The maximum capability can be 2GB, so the original data can be saved perfectly
  by  no compression.
■The average review time of single case can be less than 40 seconds by using
  interface of USB 2.0.
■Record waveform details inextenso by the design of high precision and sampling
■Record the state of pacemaker exactly by higher sampling frequency.

The features of software
■Quick and accurate analysis system.
■With 3 leads synchro analysis, QRS search can be more exactly.
■ There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc. and multiplicate User-defined templates could almost identify every kind of pathologic waveforms.
■Optional main channel.
■ Agile and exact "Atrial Fibrillation" analysis.
■The function of pacing analysis could analyse all pacemakers.
■ Many pacine modules have been added.
■ Any period of single lead or 3-leads ECG can be reviewed at any time with the
  function of fast waveform review and analysis.
■ The types of the analysis system of HR variability include five minutes of short
   ECG and one hour or 24-hour of long ECG.
■ Print report expediently.
■ Perfect function of case management.
■ With the function of ST segment analysis and general load of the disorder of the heart muscle, the physician can judge a disease or disorder of the heart muscle generally.
■"Sleep breath pause syndrome analysis", the physician could print sleep asphyxia
   analysis report and diagnose.
■"HRT" analysis, when the adjustable function is natural, this transitory change
  will be represented by the form of HRT immediately.
■15."T Wave Alternation" analysis is a important index on judging and preventing arrhythmia.

Number of channels: 3 channels;
Sampling rate: 10000Hz;
Sampling accuracy:12bit;
Recording time : 24 h;
Power: 2 batteries in size 5;
Interface: USB2.0;
Scale voltage:1mV±5%;
Standard Sensitivity:10mm/mV±5%;
Noise level:≤30μV;
Feathers of low frequency : Time constant>3.2s;
Scan speed:25mm/s±5%;
Enduring polarization voltage:±300mV;
Least measure signal : 50 µV p-p;
