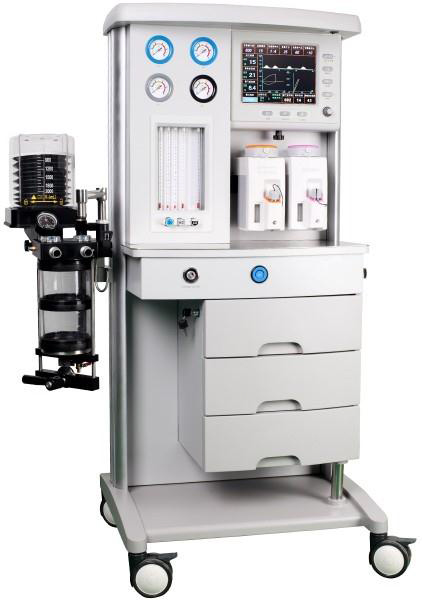

Anesthesia >GE 500



The GE Series of Anesthesia machines are a robust feat of engineering with heavy duty alloy frame and state-of-the-art design that ensures surgeons have one thing less to worry about during their work.

The compact design keeps the unit footprint to a minimal while providing all the features and technology found in most premium grade Anesthesia Machines today.

Download Brochure Here

  • Special Feature
     Display:10.4TFT color screen
     Application: Adult, Pediatric
     Driven mode: Pneumatically driven electronically
    controlled
     Anesthetic vaporizer: Two high precise vaporizers, Halothane, Enflurane or Isoflurane.
     Power supply: 220V±10%, 50Hz±1Hz
    10V±10%, 60Hz±1Hz
     Internal battery: DC12V(over 4 working hours)
     Fresh gas outlet is in front of frame

    Anesthesia Ventilator
     Respiration mode:IPPV,VCV,PCV,SIMV,SIGH,MANUAL,STANDBY,DEMO
     Waveform: P-t, F-t, V-t, F-v, V-p
     Tidal Volume: 20~1600ml
     Respiratory frequency: 1~65bpm
     I:E ratio: 8:1~1:8
     Inspiration pause: 0~55%Ti
     Inspiration Pressure: 1~60cmH2O
     Trigger Pressure: -20~20cmH2O
     Monitoring parameters: O2 concentration, MV, Respiratory frequency, Tidal volume, Ppeak,
    PEEP, I:E ratio, Pmean, etc.
     Alarm parameters: high pressure alarm, low pressure alarm, O2 concentration alarm, MV alarm, O2 source failure alarm, AC power failure alarm, etc.
     Pressure alarm setting: High pressure alarm set 1~60cmH2O.
    Low pressure alarm set 0~20cmH2O
     O2 concentration alarm setting: high: 21~99%. Low: 21~50%.
     MV alarm setting: MV high alarm set 10~99L/min .MV low alarm set 0~40L/min

    Main Unit
     Circle absorber: Compact circle absorber
     Flow meter: Five-tube flow meter
    O2 tube: 0L/min~1L/min~10L/min.
    N2O tube: 0L/min~1L/min~10L/min.
    Air tube: 0L/min~10L/min
    O2 and N2O Linkage Device, keep oxygen concentration over 25% Oxygen flush: 25L/min~75L/min
     Gas source pressure:
    O2: 0.25Mpa~0.65MPa
    N2O: 0.25Mpa~0.65MPa
    Air: 0.25Mpa~0.65MPa
