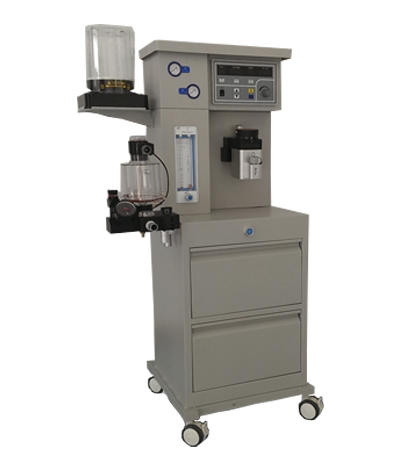

Anesthesia >GE 800 Plus

The GE Series of Anesthesia machines are a robust feat of engineering with heavy duty alloy frame and state-of-the-art design that ensures surgeons have one thing less to worry about during their work.

The compact design keeps the unit footprint to a minimal while providing all the features and technology found in most premium grade Anesthesia Machines today.

Download Brochure Here

  • Special Feature
     Application: Adult, Pediatric
     Driven mode: Pneumatically driven electronically
    controlled
     Mode: Semi-open, Semi-closed or closed system
     Anesthetic vaporizer: One vaporizer (optional two)

    Anesthesia Ventilator
     Display: High light LED display
     Ventilation Volume: 50~1600ml
     Breath frequency: 1~90BPM
     I:E ratio: 4:1 ~ 1:6
     Monitor parameter: Tidal volume, breath frequency, MV
    Alarm: MV high alarm, MV low alarm, TV high alarm, TV low alarm

    Main Unit
     Circle absorber: Compact circle absorber
     Bellow: 0 ~ 1600ml
     Oxygen FLUSH: 25L/min ~ 75L/min
     Flow meter:
    O2, N2O two-tube flowmeter
    O2 tube: 0L/min ~ 10L/min
    N2O tube: 0L/min ~ 10L/min
    O2 and N2O linkage device Adjust O2 and N2O in proportion ( keep O2 concentration not lower than 25% )
     Gas source pressure
    O2: 0.25 ~ 0.65Mpa
    N2O: 0.25~ 0.65Mpa
     Gauge: 2 units, one N2O, one O2
