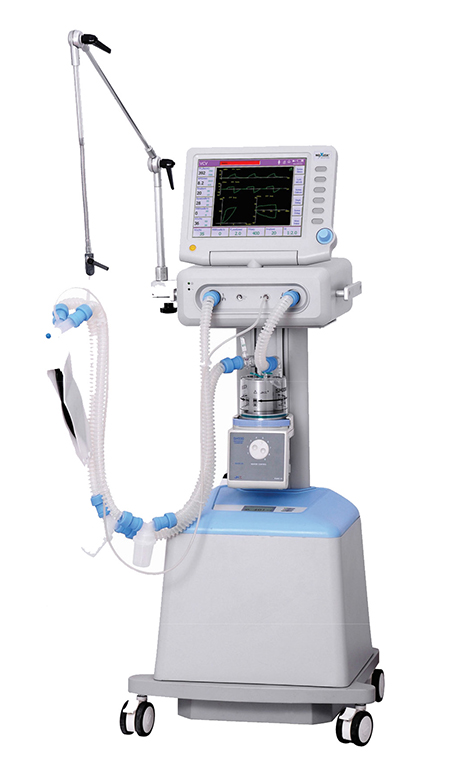

The LifePro series of ICU ventilators are designed for the most demanding ICU environments. Built to last, the LifePro 8 ICU ventilator offers robust and consistent performance when its needed.
|
Download Brochure Here
Features
12.1 inch TFT color screen , big screen could show more information.
Screen could be rotated freely, suitable to operate in any angle and height
With heater device to prevent water into ventilator
Could show Paw-t、Flow-t、Volume-t、Paw-V、Flow-V five waveform at the same time, also could show one or
several waveform according to our operation.
Curve size ,time scale, pressure-flow ratio adjustable, watch the details more good.
Curve pause function, could watch details.
Flow, pressure two trigger function, could effect at a same time.
Automatically inspiratory synchronous nebulizing function, nebulizing time adjustable;
100% Oxygen inspiratory function, oxygen inspiratory time is adjustable.
High, medium, low- grade alarm function;
Alarm record functions, could record the last 100 pieces of information, show alarm grade, alarm time and the alarm
parameter.
Pressure, volume, time respiratory mode security, could inspect pressure in inspiratory phase, volume, time exceed the
regulated value, turn into expiratory, ensure patient safety.
Volume security function, keep the minimum tidal volume in pressure mode.
Adjust MMV function automatic, adjust inspiratory pressure and breathing frequency, approaching the target tidal
volume
and minute ventilator.
VGA connector could output the screen signal to other screen
Specification
Operating Modes
Volume Control Ventilation (VCV)
Assisted/Controlled Pressure Control Ventilation (PCV),
Assisted/Controlled Pressure Support Ventilation (PSV),
SIMV(VCV)+PSV
SIMV(PCV)+PSV
Mandatory Minute Ventilation (MMV)
Continuous Positive Airway Pressure(CPAP)
Parameter
Application scope: Pediatric and adult
Driven mode: pneumatically driven and electronically controlled
Display:12.1 TFT screen
Working mode: Pressure and volume
Ventilation wave type: squire wave, deceleration wave
FiO2: 21% to 100%
PEEP/CPAP: 0 to 40 cmH2O
Inspiratory Sensitivity:
Flow triggered: 0.5 to 20 L/min, OFF
Pressure triggered: -1 to -20 cmH2O, OFF
Tidal Volume: 20 to 2000 mL
Breath frequency: 1 to 100 bpm
I:E Ratio: 5.0 : 1 to 1 : 5.0
Inspiratory plateau: 0 to 50%
Inspiratory Flow Wave Shape(VCV): Rectangular wave and Decelerating wave
SIGH: 1.0 to 2.0
Breath frequency(SIMV): 2 to 40bpm
Inspiratory time (SIMV): 0.1 to 12 S
Pressure Support Ventilation (PSV): 0 to 40 cmH2O
Expiratory Sensitivity for PSV : 10% to 75% of the initial flow
Maximum Inspiratory time (PSV): 1.0 to 8.0 S
Pressure Control Ventilation(PCV): 0 to 40 cmH2O
Minimum Tidal Volume(PCV and PSV): 50 to 1500 mL
Backup Rate (PSV): 2 to 40 bpm
Object Tidal Volume(MMV): 20 to 2000 mL
Ventilation volume(MMV): 0.5 to 40.0 L/min
Nebulizer time: 30 minutes
Monitoring
Breathing wave: Pressure vs time curve,Flow vs time curve,Volume vs time curve,Pressure vs volume loops,Flow vs volume loops
Expiratory tidal volume:,
Breath frequency(bpm),
PEEP:
FiO2
MV
Insipiratory Tidal volume(TV_Insp):
I:E ratio:
Freq_indepen:
MV_Indepen:
Pmean
Pflat:,
Airway Pressure
Ppeak,
Minute Ventilation,
Oxygen concentration
Alarms
High tidal volume alarm
Low tidal volume alarm
High minute ventilation alarm
Low minute ventilation alarm
High breathing frequency alarm
Low breathing frequency alarm
High peak pressure alarm
Low peak pressure alarm
High PEEP pressure alarm
Low PEEP pressure alarm
High oxygen concentration alarm
Low oxygen concentration alarm
Apnea time alarm
Respirtory arrest alarm
AC power fail alarm
Air source Low pressure alarm
Oxygen source low pressure alarm
Batterydisconnect alarm
Low battery alarm
Circle leakage alarm
Circle block alarm
Air compressor BC100 (Optional)
Feature:
Low noise medical air Compressor, very stable performance, safe and reliable,
Air Compressor with LCD screen to display output pressure, provide safe, secure and permanent motivation
Compact design and easy to transfer
Assembled with clean control module, supplying cleaner and safer air to the patients
Effective sound-absorbing materials
Match with various ventilator of international standard in the world
Specification
NO. |
Name |
Specifications |
Notes |
1 |
Output gas flow |
≥40L/min |
|
2 |
Output gas pressure |
0.3~0.4Mpa |
Adjustable |
3 |
Output gas filter accuracy |
0.03μm |
|
4 |
Air compressor pump |
1sets |
|
5 |
Efficient rate for particle filtration |
99% |
|
6 |
Dew point of output gas: |
0~10℃ |
Dried output gas |
7 |
Noise |
46~48dB(A) |
|
8 |
Power supply |
220V±15% ,50HZ or 110V±15%,60HZ |
|
9 |
Power |
<800W |
|
10 |
Working Environment |
Temperature 0~40°C
Humidity<90RH |
|
11 |
Net Weight |
40kg |
|
12 |
Size |
510*560*610mm |
|
POWER REQUIREMENT
Main power: from 85 to 265VAC 47-63HZ
Automatic voltage switch
Internal battery: 12VDC; 7AH
Automatic recharge.
Estimated duration: more than 2 hours when completely charged.
The display shows an icon with the charge level.
PNEUMATIC REQUIREMENT
Oxygen: pressure 2.8 to 6 bar ISO5359 connector
Air: pressure 2.8 to 6 bar ISO 5359 connector
