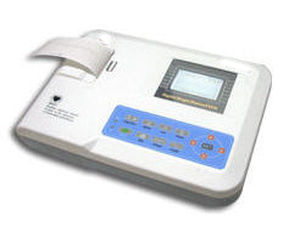

The HartPro series of ECG Machines are designed to be robust and easy to use even in the most demanding emergency environments.
It's large color display will ensure that you don't miss a beat and clear thermal printing will ensure you pick up any and all anomalies.
The HartPro series of ECG Machines are the pinacle of modern electro-kardiograph technology. It has a full range of features including, memory, data management and simultaneous 12 leads acuisition.
Simply put, the HartPro series are the staple for every Hospital.
|
Download Brochure Here
Features
■ 2.7" FSTN display shows the working status and ECG waveform.
■Output system:High-resolution thermal-array(32dots/mm),it needs not be adjusted.Recording frequency Response:Up to 150Hz.
■The device can record exact single ECG waveform and remark. The mark includes:lead sign,ensitivity,paper speed,filter state.
■ Under automatic mode,just press the button once,it starts record procedure,which can enhance your work efficiency
■The language of operation interface include include(Chinese,English,French,Italian,Turkish,Espanol,Deutsch,Russia)
■ The keyboard's control is whole touch type,it's convenient to operate.
■ Classification:Class:I,CF defibrillator proof
■ Power supply:AC/DC,rechargeable lithium battery inside.
■ This instrument can record 160 pieces of ECG waveform and 4hours, standby for 10 hours continually under the best DC state
■The figure of whole device is elegancy and gliding
■ According to defendence degree of deleterious fluid, this device is belong to common device.
■ Digital signal processor for effective inhibition of AC,EMG and DFT,receive the better ECG waveform.
■ According to the working mode class, this device belongs to continuous operation equipment.
Technical Specification:
Normal work environment
a. Environment temperature: +5℃~+35℃
b. Relative humidity: ≤80%
c. Atmospheric pressure: 86kPa~106kPa
Store and Transportation
a. Environment temperature: -10~55℃
b. Relative humidity: ≤95%
c. Atmospheric pressure: 50kPa~106kPa
ECG instrument input
■Input way: Floating and defibrilation protection
■Lead: Standard 12 leads
■Patient leak current: <10μA
■Sampling rate:1000Hz
■A/D change:10 Bit
■Frequency response: 0.05Hz~150Hz(-3dB,+0.4dB)
■Time constant: Time constant>3.2s
■CMRR: >60dB, >100dB( With AC filter)
■Enduring polarization voltage:±500mV
■Noise level: ≤15μVp-p
■EMG interference filter: 35Hz(-3dB)
■AC filter:50Hz/60Hz(≥20dB)
■Sensitivity choice: 5,10,20mm/mV, error:±5%.Standard sensitivity is 10mm/mV±0.2mm/mV
■Recording way: Thermal printing system
■Auto-record: according the the record format and auto-mode to set, auto leads-changing, auto measurement.
■Manual record: according the record format to record, manual leads-changing.
■Specification of recording paper:50mm(W) × 20mm(L)High-speed thermal paper
■Paper speed: 25mm/s,50mm/s,error:±5%
■Product safety type:Class I, type CF defibrillator proof
■Fuse Specification:2 pcs φ5*20mm AC time lag; T1.6AL250V
■Size:315mm(L)*215mm(W)*77mm(H)
■Net Weight:1.5kg
■Power supply: AC:100~240V,50/60 Hz
DC: 7.4V, 2000 mAh rechargeable lithium battery
Accessories:
ECG leads 1 set
Limb electrode clamp 1 set
Chest electrode 1 set
Power connection 1 piece
Recording paper 1 piece
Ground wire 1 set
User manual 1 piece
Certification
CE, CCC
