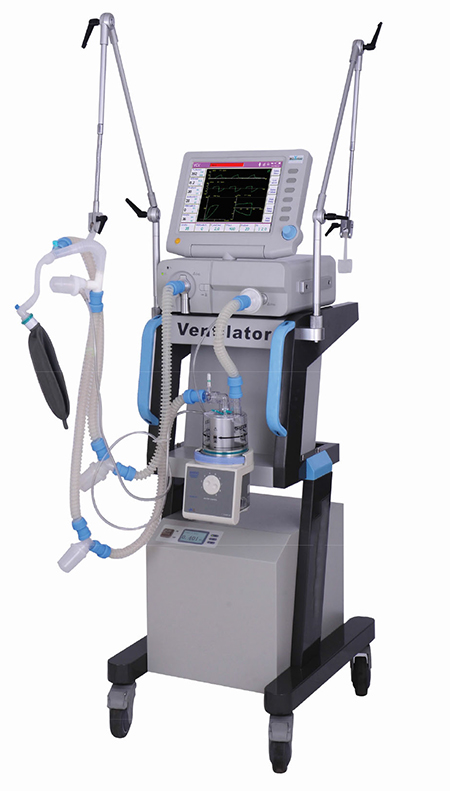

ICU Ventilator>LifePro 8 Plus



The LifePro series of ICU ventilators are designed for the most demanding ICU environments. Built to last, the LifePro 8 ICU ventilator offers robust and consistent performance when its needed.


Download Brochure Here

Features

12.1 inch TFT color screen , big screen could show more information.

Screen could be rotated freely, suitable to operate in any angle and height

With heater device to prevent water into ventilator

Could show Paw-t、Flow-t、Volume-t、Paw-V、Flow-V five waveform at the same time, also could show one or

several waveform according to our operation.

Curve size ,time scale, pressure-flow ratio adjustable, watch the details more good.

Curve pause function, could watch details.

Flow, pressure two trigger function, could effect at a same time.

Automatically inspiratory synchronous nebulizing function, nebulizing time adjustable;

100% Oxygen inspiratory function, oxygen inspiratory time is adjustable.

High, medium, low- grade alarm function;

Alarm record functions, could record the last 100 pieces of information, show alarm grade, alarm time and the alarm

parameter.

Pressure, volume, time respiratory mode security, could inspect pressure in inspiratory phase, volume, time exceed the

regulated value, turn into expiratory, ensure patient safety.

Volume security function, keep the minimum tidal volume in pressure mode.

Adjust MMV function automatic, adjust inspiratory pressure and breathing frequency, approaching the target tidal

volume

and minute ventilator.

VGA connector could output the screen signal to other screen


Specification

Operating Modes

Volume Control Ventilation (VCV)

Assisted/Controlled Pressure Control Ventilation (PCV),

Assisted/Controlled Pressure Support Ventilation (PSV),

SIMV(VCV)+PSV

SIMV(PCV)+PSV

Mandatory Minute Ventilation (MMV)

Continuous Positive Airway Pressure(CPAP)

Parameter

Application scope: Pediatric and adult

Driven mode: pneumatically driven and electronically controlled

Display:12.1 TFT screen

Working mode: Pressure and volume

Ventilation wave type: squire wave, deceleration wave

FiO2: 21% to 100%

PEEP/CPAP: 0 to 40 cmH2O

Inspiratory Sensitivity:

Flow triggered: 0.5 to 20 L/min, OFF

Pressure triggered: -1 to -20 cmH2O, OFF

Tidal Volume: 20 to 2000 mL

Breath frequency: 1 to 100 bpm

I:E Ratio: 5.0 : 1 to 1 : 5.0

Inspiratory plateau: 0 to 50%

Inspiratory Flow Wave Shape(VCV): Rectangular wave and Decelerating wave

SIGH: 1.0 to 2.0

Breath frequency(SIMV): 2 to 40bpm

Inspiratory time (SIMV): 0.1 to 12 S

Pressure Support Ventilation (PSV): 0 to 40 cmH2O

Expiratory Sensitivity for PSV : 10% to 75% of the initial flow

Maximum Inspiratory time (PSV): 1.0 to 8.0 S

Pressure Control Ventilation(PCV): 0 to 40 cmH2O

Minimum Tidal Volume(PCV and PSV): 50 to 1500 mL

Backup Rate (PSV): 2 to 40 bpm

Object Tidal Volume(MMV): 20 to 2000 mL

Ventilation volume(MMV): 0.5 to 40.0 L/min

Nebulizer time: 30 minutes

Monitoring

Breathing wave: Pressure vs time curve,Flow vs time curve,Volume vs time curve,Pressure vs volume loops,Flow vs volume loops

Expiratory tidal volume:,

Breath frequency(bpm),

PEEP:

FiO2

MV

Insipiratory Tidal volume(TV_Insp):

I:E ratio:

Freq_indepen:

MV_Indepen:

Pmean

Pflat:,

Airway Pressure

Ppeak,

Minute Ventilation,

Oxygen concentration

Alarms

High tidal volume alarm

Low tidal volume alarm

High minute ventilation alarm

Low minute ventilation alarm

High breathing frequency alarm

Low breathing frequency alarm

High peak pressure alarm

Low peak pressure alarm

High PEEP pressure alarm

Low PEEP pressure alarm

High oxygen concentration alarm

Low oxygen concentration alarm

Apnea time alarm

Respirtory arrest alarm

AC power fail alarm

Air source Low pressure alarm

Oxygen source low pressure alarm

Batterydisconnect alarm

Low battery alarm

Circle leakage alarm

Circle block alarm

Air compressor BC100 (Optional)

Feature:

Low noise medical air Compressor, very stable performance, safe and reliable,

Air Compressor with LCD screen to display output pressure, provide safe, secure and permanent motivation

Compact design and easy to transfer

Assembled with clean control module, supplying cleaner and safer air to the patients

Effective sound-absorbing materials

Match with various ventilator of international standard in the world

Specification

NO.

Name

Specifications

Notes

1

Output gas flow

≥40L/min



2

Output gas pressure

0.3~0.4Mpa

Adjustable

3

Output gas filter accuracy

0.03μm



4

Air compressor pump

1sets



5

Efficient rate for particle filtration

99%



6

Dew point of output gas:

0~10℃

Dried output gas

7

Noise

46~48dB(A)



8

Power supply

220V±15% ,50HZ or 110V±15%,60HZ



9

Power

<800W



10

Working Environment

Temperature 0~40°C

Humidity<90RH



11

Net Weight

40kg



12

Size

510*560*610mm




POWER REQUIREMENT

Main power: from 85 to 265VAC 47-63HZ

Automatic voltage switch

Internal battery: 12VDC; 7AH

Automatic recharge.

Estimated duration: more than 2 hours when completely charged.

The display shows an icon with the charge level.


PNEUMATIC REQUIREMENT

Oxygen: pressure 2.8 to 6 bar ISO5359 connector

Air: pressure 2.8 to 6 bar ISO 5359 connector
